The Lineage 26" Air-Master was created to take a DNA strand or two from our past and thread it into state of the art contemporary designs of the present. Look at this masterpiece, from a glance it's difficult to tell from the original 30 years prior. But when you look closely, you will see all modern technology. Investment cast dropouts, Mid BB, internal headset. Forks are fully heat treated and butted same as the Kneesaver bars and Fusion Alloy 22mm cranks. This bike is as high level BMX you are going to buy in todays market.
- 100% chromoly Lineage Team Master 26" frame with twin top tube, Mid BB shell, integrated head tube and Lineage heat-treated cast dropouts with integrated chain tensioners
- 100% chromoly 26" fork with internal threaded steer tube, tapered legs, 1991 style dropouts, 990 brake mounts with internal brake cable routing
- 100% heat treated and butted chromoly Lineage Kneesaver bars 8.5" with Haro Lineage CNC alloy top load stem
- Lineage heat treated 3-piece chromoly 48-spline 175mm cranks with Haro Fusion Disc 41T CNC alloy bolt drive sprocket and sealed Mid BB
- 41/17 gearing
- Fully sealed wheels with Lineage high flange hubs and double-wall alloy rims with satin finish
- Kenda Kranium tires 26 x 2.21" front and rear
- Haro Lineage padded Pivotal seat with alloy Lineage Pivotal fluted post
- Haro Fusion alloy pedals
- CNC alloy gyro with Teflon bearing
- Haro Team grips
- KMC K710SL super light chain
- Dia-Compe "Hombre" FS996 brakes with Tech 77 levers front and rear
- Haro Lineage alloy seat post clamp

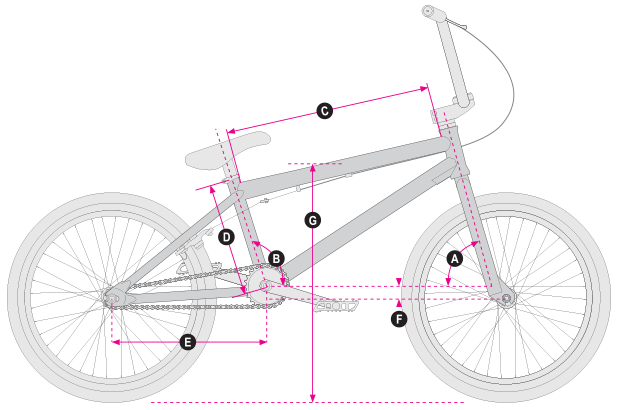

A. HEAD ANGLE | B. SEAT ANGLE | C. TOP TUBE | D. SEAT TUBE | E. CHAINSTAY | F. BB HEIGHT | G. STAND OVER | |
---|---|---|---|---|---|---|---|
22.5 | 73° | 69° | 21 (520.7 mm) | 10.2 (275 mm) | 13.7 (362 mm) | 11.5 (293 mm) | 21.5 (546 mm) |
16" WHEEL | ages 5 - 7 | 3'6" - 3'10" |
---|---|---|
18" WHEEL | ages 6 - 8 | 3'10" - 4'2" |
18.5" TOP TUBE 20" WHEEL | ages 7 - 9 | 4'3" - 4'8" |
19.5" TOP TUBE 20" WHEEL | ages 10 - 12 | 4'5" - 4'10" |
20.5" TOP TUBE 20" WHEEL | ages 13+ | 5'3" - 5'9" |
20.75" TOP TUBE 20" WHEEL | ages 13+ | 5'4" - 5'9" |
21" TOP TUBE 20" WHEEL | ages 13+ | 5'9" - 6' |
24" WHEEL | ages 13+ | 5'9" - 6' |
Specs
Frame | Lineage Master Bashguard 26" frame - 22.5" full crmo; internal h/t crmo - with removable rotor tab mounting holes; removable brake mounts. |
---|---|
Fork | Haro Fork with 990 mounts and internal cable routing; 28mm offset; 3/8" axle; cr-mo steerer; tapered fluted legs |
Rims | Haro Lineage 26x1.75"; 48h; (w200) (double wall welded joint) |
Hubs |
Front: 48h alloy hub body; 3/8"x100wx155l; crmo 155mm straight axle; 2 sealed bearings Rear: Haro Lineage sealed bearings; 17t Freewheel; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts |
Tires | Kinda Kranium tire; 26x2.25; 60 max psi |
Bottom Bracket | Sealed MID BB |
Crankset | Haro Lineage heat treated 3-piece alloy 175mm cranks (bolt drive interface) rsd and lsd; 22mm spindle |
Chain | KMC K1Sl; 1/2 x 1/8; Narrow Silver Super Lite |
Brakes | Dia-Compe fs996 "hombre" u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts |
Rotors | Teflon bearing gyro - full cnc 6061 t6 included a-plate |
Brake Levers | Dia-Compe "tech-77" lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever |
Handlebars | Lineage kneesaver bar 8.5"; 100% heat treated; multi-butted |
Tape/Grips | Haro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft). |
Stem | Haro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 52mm |
Headset | Sealed Integrated, 1 1/8" |
Seatpost | Haro Fusion stealth pivotal seat post; 25.4 x 300mm |
Saddle | Haro Fusion slim stealth pivotal seat |
Pedals | Haro Fusion; alloy pedal body; crmo axle |
Accessories & Extras | 6061 alloy pegs; 34mm od; 110mm length; include 4 total pegs |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Neon Red / 26-inch | 691840216258 | 21625 | HAR222993896 |
