Norco Range C3 - 2023

Norco Range C3
  • Color: Red/Silver
$4,499.00
Color: Red/Silver
Size: Select size
Please select options Unavailable

Details

Precision tracking in the rough, superior climbing efficiency, and a completely new angle on suspension make the Range C3 the fastest bike in Enduro—and your ultimate Big Mountain companion.

With 170mm of suspension travel front & rear and precision handling, the Range C3 makes the speed feel easy, helps maintain momentum on rough descents, and makes the most of every pedal stroke.

bike frame with labeled dimensions

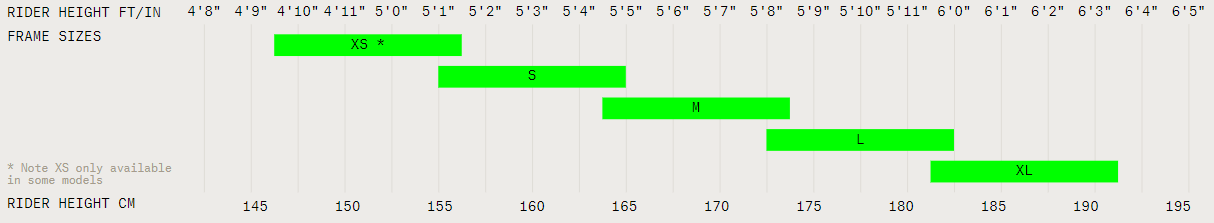

Bike Sizes:
SMLXL
A. Reach 420 450 480 510
B. Stack 618 630 641 653
C. Standover 662 663 665 695
D. Effective Top Tube 568 598 628 658
E. Head Tube Angle 63.75 63.5 63.25 63
F. Head Tube Length 100 115 130 145
G. Seat Tube Angle 76.5 76.75 77 77.25
H. Seat Tube Length 370 395 410 455
I. Bottom Bracket Height 355 355 355 355
J. Bottom Bracket Drop 20 20 20 20
K. Fork Rake/Offset 44 44 44 44
L. Trail 136 138 140 142
M. Wheelbase 1203 1243 1285 1329
N. Front to Center 440 440 442.5 447.5
Travel 170 170 170 170

Specs

Frame Full Carbon, 170mm Travel, Ride Aligned
Fork RockShox ZEB, Charger R, 170mm Travel, 44mm offset
Rear Shock Fox DHX2 Factory Coil, HSC/LSC, HSR/LSR, Custom Tune, 205x62.5mm Trunnion
Rims Stan's Flow D, 32H, 29"
Hubs Front: Sealed Bearing, 15x110mm Boost, 6 Bolt
Rear: Sealed Bearing, 12x148mm Boost, XD, 6 Bolt
Spokes Stainless - Black
Tires Front: Maxxis Assegai 2.5", DD, 3C MaxxGrip, TR
Rear: Maxxis Minion DHRII 2.4", WT, DD, 3C MaxxGrip, TR
Bottom Bracket Shimano PF92
Crankset Shimano Deore FC-MT510-1, 32T, 170mm
Shifters Shimano SLX SL-M7100-R
Rear Derailleur Shimano SLX RD-M7100
Cassette/Freewheel Shimano Deore CS-M6100-12, 10-51T, 12 Speed
Chain Shimano Deore CN-M6100
Brakes Shimano BR-MT520, 4 Piston, Metallic Pads
Rotors Shimano RT-64, 203mm
Handlebars 6061 Aluminum, 800mm, 25mm Rise
Tape/Grips DMR DeathGrip Soft, Thin (S, M), Thick (L, XL)
Stem e*thirteen Base, 40mm Length, 35mm Clamp
Headset FSA #57 E Internal Sealed Bearing
Seatpost TranzX YSP-105 Adjustable Dropper, 34.9mm, 150mm (S), 170mm (M). 200mm (L, XL)
Saddle WTB Volt 250 Sport
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Red/Silver / Small 058817513596 0610611904 RAN17693253S
Red/Silver / X-Large 058817513633 0610611907 RAN20941467R
