Details
The Sight C2 boosts your All-Mountain confidence with incredible descending capability, adept, sure-footed climbing, and efficient pedaling.
To make the Sight Carbon, we had to re-think how you connect with the trail.
With maximum front and rear wheel grip on climbs and descents, Sight C2 maintains momentum and cadence in technical situations and allows the suspension to move freely without absorbing drivetrain energy.
Reasons It's Rad:
- Precise tune and fit perfects every ride.
- Max standover with long travel dropper posts.
- Sweating the little stuff makes the ride better.
- Four piston brakes with 200/180mm rotors.
- Features the Ride Aligned Design System.
Wheel size:
Sizes Small – X-Large: 27.5-inch or 29-inch

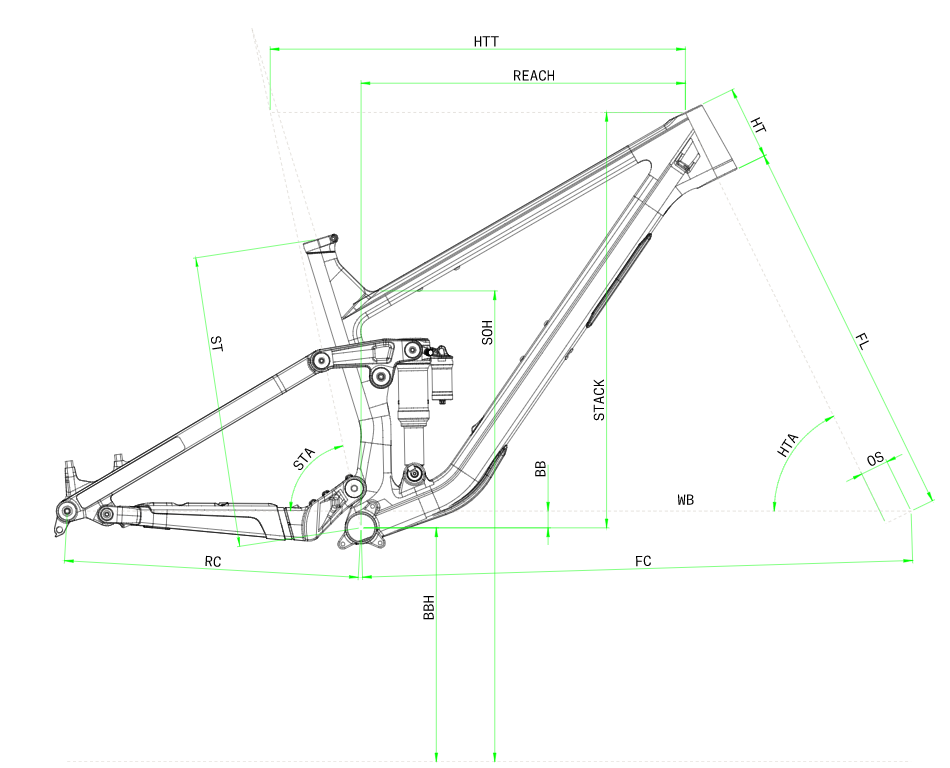

Frame Size | Small | Medium | Large | X-Large | Small | Medium | Large | X-Large |
---|---|---|---|---|---|---|---|---|
Wheel Size | 27.5" | 27.5" | 27.5" | 27.5" | 29" | 29" | 29" | 29" |
Travel (mm Front/mm Rear) | 160/150 | |||||||
Reach (mm) | 425 | 455 | 485 | 515 | 425 | 455 | 485 | 515 |
Head Tube Angle | 63.5 | 64 | ||||||
Fork Offset (mm) | 37 | 42 | ||||||
Seat Tube Length (mm) | 370 | 395 | 435 | 465 | 370 | 395 | 435 | 465 |
Effective Seat Tube Angle | 77 | 77.3 | 77.7 | 78 | 77 | 77.3 | 77.7 | 78 |
Rear Center Length (mm) | 430 | 435 | 440 | 445 | 430 | 435 | 440 | 445 |
Bottom Bracket Drop (mm) | 15 | 25 | ||||||
Bottom Bracket Height (mm) | 342 | 350 | ||||||
Horizontal Top Tube Length (mm) | 560 | 588 | 617 | 645 | 564 | 593 | 621 | 649 |
Wheel Base (mm) | 1180 | 1220 | 1259 | 1299 | 1183 | 1222 | 1262 | 1301 |
Stand Over Height (mm) | 668 | 677 | 683 | 701 | 682 | 687 | 704 | 726 |
Head Tube Length (mm) | 100 | 110 | 120 | 130 | 90 | 100 | 110 | 120 |
Trail (mm) | 137 | 136 | ||||||
Recommended Seat Post Drop (mm) | 150 | 170 | 200 | 150 | 170 | 200 | ||
Maximum Post Insertion (mm) | 225 | 250 | 270 | 225 | 250 | 270 | ||
Stem Length (mm) | 40 | |||||||
Crank Length (mm) | 170 | |||||||
Tire Size | 2.35" – 2.6" | |||||||
Water Bottle Compatible | 1 x 620 mL | 1 x 750 mL | 1 x 620 mL | 1 x 750 mL |
Size | Height (inches) | Height (cm) |
---|---|---|
X-Small | 4'9 1/2" - 5'1 1/2" | 146 - 156cm |
Small | 5'1" - 5'5" | 155 - 165cm |
Medium | 5'4 1/2" - 5'8 1/2" | 164 - 174cm |
Large | 5'8" - 6'0" | 173 - 183cm |
X-Large | 5'11 1/2" - 6' 3 1/2" | 181 - 191cm |
Due to supply chain issues, specs are subject to change without notice.
Specs
Frame | Carbon All-Mountain, Aluminum CS, 150mm Travel, 27.5" and 29" Options, Ride Aligned™ |
---|---|
Fork | Fox Performance Elite 36, GRIP 2, 160mm, HSC, LSC, HSR, LSR, 37mm Offset (27.5), 44mm Offset (29) |
Rear Shock | Fox Performance FLOAT X2, HSC/LSC, HSR/LSR, 185x52.5mm Trunnion |
Rims | Stan's Flow S2, 32H |
Hubs |
Front: Shimano SLX M7010, 15x110mm Boost, Center Lock Rear: Shimano SLX M7110, 12x148m Boost, Micro Spline, Center Lock |
Spokes | DT Competition DB Stainless, Black |
Tires |
Front: Maxxis Assegai 2.5" 3C Maxx Terra/EXO+/TR, Folding Rear: Maxxis Minion DHR II 2.4" WT 3C, Maxx Terra/EXO+/TR, Folding |
Bottom Bracket | Shimano PF92 |
Crankset | Shimano Deore XT FC-M8120-1, 34T (27.5), 32T (27.5 S), 32T (29), 170mm |
Shifters | Shimano XT SL-M8100 |
Front Derailleur | e*thirteen Vario Top Guide Chain Tensioner |
Rear Derailleur | Shimano XT RD-M8100 |
Cassette/Freewheel | Shimano SLX CS-M7100-12, 10-51T, 12 Speed |
Chain | Shimano SLX CN-M7100 |
Brakes | Shimano SLX 4 piston, Metallic Pads |
Rotors |
Front: Shimano RT-64, 203mm Rear: Shimano RT-64, 180mm |
Brake Levers | Shimano SLX |
Handlebars | Deity Ridgeline, 800mm, 25mm Rise |
Tape/Grips | DMR DeathGrip Soft, Thin (S, M), Thick (L, XL) |
Stem | Alloy, 40mm Length, 35mm Clamp |
Headset | FSA #57 E Sealed Bearing, Tapered |
Seatpost | TranzX YS105, Adjustable Travel, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL), Norco design alloy nutted clamp 38.5mm |
Saddle | SDG Bel Air V3 |
Pedals | Sold Separately |
Accessories & Extras | Valves: Stan's 35mm Tubeless Presta; Sealant: Stan's 200mL |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Blue/Orange / Medium / 27.5-inch | 058817578632 | 0621622755 | SIG25276373M |
Grey/Gold / Medium / 27.5-inch | 058817578489 | 0621612755 | SIG23563658M |
Grey/Gold / Large / 27.5-inch | 058817578496 | 0621612756 | SIG23641339L |
Grey/Gold / X-Large / 27.5-inch | 058817578502 | 0621612757 | SIG24845986L |
